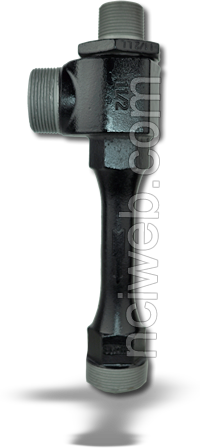

Gas Eductors

Eductor models for liquids pumping gases are: ML, MLE and for gases pumping gases: SG, HG. These models can be used for both exhausting and evacuation.

Most jet pumps are available in sizes from 1/2" through 3" in a wide variety of materials right from our inventory. We offer sizes up to 12".

PVC Construction Available

Exhausting: This application involves removing gases at a continuous rate from an area while maintaining the pressure at a stable level. These applications often involve removing gases or fumes that are continuously recurring. An example would be removing smoke from a welding or machining area. This process also could be used for injecting oxygen into a liquid stream. If the gases being removed have undesirable characteristics, it is possible in some cases to neutralize them by using a reactive motive fluid.

Evacuation: This application involves pulling gases (using jet pumps) from a defined volume by pumping the tank down from a starting pressure to a final lower pressure. It is generally sized by determining the amount of time it takes to reduce the pressure in the vessel to the desired final pressure. Examples of this application would be reducing the pressure in a reaction vessel to purge it of detrimental gases, or removing steam from a vessel before opening it to increase operator safety. A variation of this type of application is the use of eductors to prime piping or a system with liquid. Priming evacuations may be used to bring the level of liquid up to pump level to avoid the pump being started dry or to establish a siphon.

Eductors operate on the basic principles of flow dynamics. This involves taking a high pressure motive stream and accelerating it through a tapered nozzle to increase the velocity of the fluid. Gas Motives are compressible fluids and are put through a converging-diverging nozzle. The gas can exceed the speed of sound. This fluid is then carried on through a secondary chamber where the friction between the molecules of it and a secondary gas (generally referred to as the suction fluid) causes this secondary gas to be pumped. These fluids are intimately mixed together and discharged from the eductor.

Eductors Specifications

There are three connections common to all venturi eductors.

Eductor MOTIVE Connection: This connection is where the power for the eductor is generated, by increasing the velocity of the motive fluid. The eductor nozzle in this section takes advantage of the physical properties of the motive fluid. Eductors with liquid motives use a converging nozzle as liquids are not generally compressible. Eductors with gas motives utilize converging-diverging nozzles to achieve maximum benefit from the compressibility of the gas. All NCI eductor nozzles for eductors have smooth flow paths. Flow paths with sudden steps or roughness on these high velocity surfaces cause jet pumps to operate less efficiently.

SUCTION Connection: This connection of the eductor is where the pumping action of the eductor takes place. The motive fluid passes through the suction chamber, entraining the suction fluid as it passes. The friction between the fluids causes the chamber to be evacuated. This allows pressure in the suction vessel to push additional fluid into the suction connection of the jet pump. The high velocity of the motive stream in this section of the eductor directs the combined fluids toward the outlet section of the eductor.

Discharge Connection: As the motive fluid entrains the suction fluid, part of the kinetic energy of the motive fluid is imparted to the suction fluid. This allows the resulting mixture to discharge at an intermediate pressure. The percentage of the motive pressure that can be recovered is dependent upon the ratio of motive flow to suction flow and the amount of suction pressure pulled on the suction port. The mixture then passes through the diverging taper that converts the kinetic energy back to pressure. The combined fluid then leaves the outlet.

The Process of Sizing an Eductor

Eductor Sizing

  • Sizing an eductor is a relatively straight forward process.  The following information will help you begin the process.  If you wish to have us size an eductor(s) for your application please use one of the "Request Pricing" forms to contact us.

How to Size Liquid Motive Eductors for Exhausting Gases

To determine the correct eductor for a specific application, follow the steps in this section, using the performance tables provided to achieve your desired results. (NOTE: Eductor tables use the 1-1/2 inch unit as the standard, and eductors are sized using a Sizing Factor (S.E.) based on this standard unit.)  read more ....

How to Size Steam/Gas Motive Eductors for Exhausting Gases

The models SG and HG are general purpose eductors used to pump gas with a gas as the motive stream. They can be used to pull both liquid and gas suction loads. In this case, we will deal with gas suction stream applications. The model SG is generally used with higher pressure motive flows in the ranges of 60 to 120 PSIG. It is possible to use lower pressures with these units if the outlet pressures are strictly controlled.

read more ....

How to Size Liquid Motive Eductors for Evacuating Gases

Net Positive Suction Head (NPSH) is one of the most used terms for pumps (including eductors) and also one of the least understood. Simply stated, NPSH is a method of evaluating a set of suction conditions for a pump. This formula takes into account variables for the particular liquid being pumped and the conditions under which it is being pumped. It corrects them to a set of standard conditions.  read more ....

How to Size Steam/Gas Motive Eductors for Evacuating

Priming is simply a special type of evacuation where the reduction of pressure in the vessel is used to draw liquid into the vessel. A good rule of thumb for priming applications is that they take twice as long as an evacuation for the same volume and pressure.

read more ....

World Class Distribution Speeds Delivery of Our Eductors

Total customer satisfaction comes from the combination of quality products purchased at a reasonable price and delivery quickly and when promised.

Large Inventory

Jet Pumps are in stock from 1/2" up to 3" sizes.  Jet Pumps are stocked in Carbon Steel, 316SS and Bronze.

Tanks Eductors are stocked in sizes from 3/8" up to 3" in both Carbon Steel and 316SS.   We stock PPL & PVDF materials in sizes from 1/4" thru 1-1/2".

Pressure Ratings

While our competition design their eductors for nominal pressure ratings, NCI Eductors are designed and produced to meet rigorous ASME/ANSI specifications.

Our eductors and jet pumps offer ratings about 30% higher than most competitors.

NCI Eductors are rated at 316SS: 720 psig @ 100 F | Carbon Steel: 740 psig @ 100 F | Bronze: 500 psig @ 100 F
